Grade crossing signalling activates when a train approaches from a distance, and continues to remain active until the last car of the train clears the crossing. If trains only passed in one direction, a single occupancy detector could activate crossing signals directly. When trains move in either direction, things become more complicated.

For bidirectional traffic, three detectors are needed: one for each approach on either side of the crossing, and the short section over the crossing itself. In one direction, signals are activated when one approach is occupied and remain active until the section over the crossing has cleared. In the other direction, signals are activated when the other approach section is occupied and remain active until the section over the crossing has cleared.

Our Grade Crossing Controller, or GCC for short, takes the occupancy information from three detectors (or six, for a double-track line), and determine if the crossing signals should be active or not.

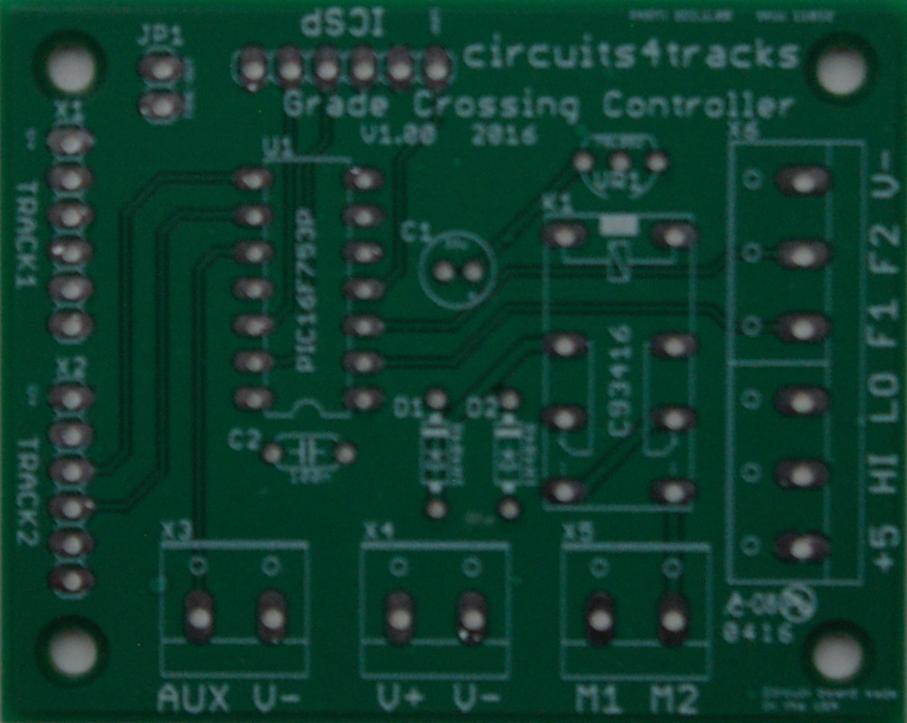

Grade Crossing Controller Circuit Board

Price: $9.79

Grade Crossing Controller
Circuit Board

Empty circuit board for one Grade Crossing Controller.

View details to add to cart...

78 available for immediate shipment.

Grade Crossing Controller Circuit Board with Microcontroller

Price: $12.99

Grade Crossing Controller
Circuit Board with Microcontroller

Empty circuit board for one Grade Crossing Controller.

View details to add to cart...

1 available for immediate shipment.

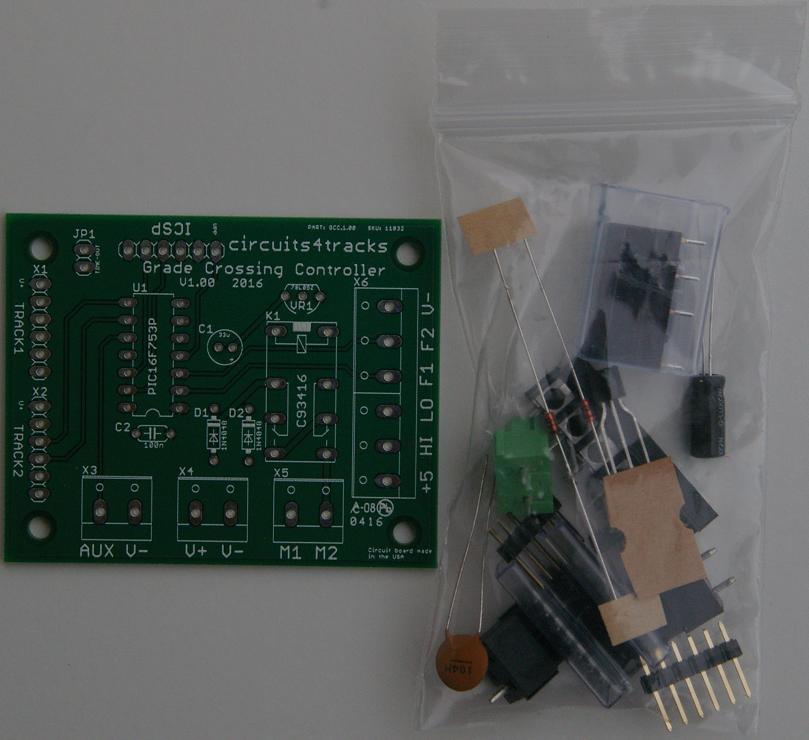

Grade Crossing Controller Kit, Stall-Motor

Price: $18.99

Grade Crossing Controller
Kit with Stall-Motor Outputs



View details to add to cart...

This item is made to order and will ship within one week.

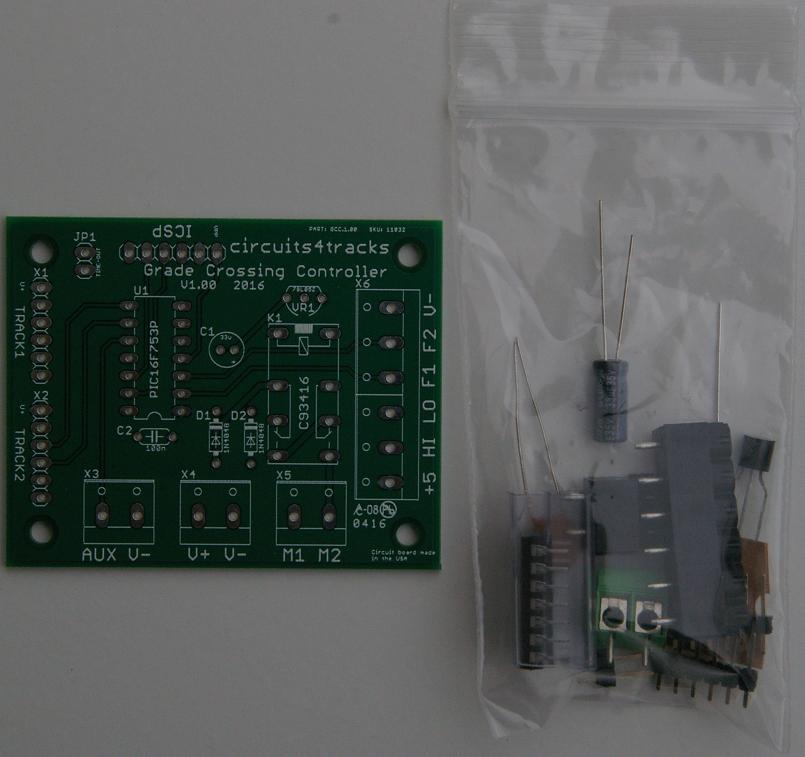

Grade Crossing Controller Kit, Basic

Price: $14.99

Grade Crossing Controller
Kit without Stall-Motor Outputs



View details to add to cart...

This item is made to order and will ship within one week.

Grade Crossing Controller Assembled, Stall-Motor

Price: $35.99

Grade Crossing Controller
Assembled and Tested Unit with Stall-Motor Outputs



View details to add to cart...

2 available for immediate shipment.

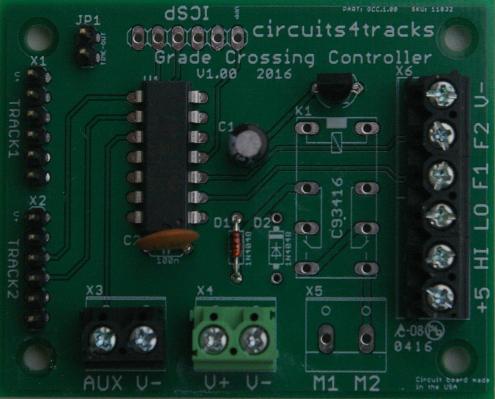

Grade Crossing Controller Assembled, Basic

Price: $29.99

Grade Crossing Controller
Assembled and Tested Unit without Stall-Motor Outputs



View details to add to cart...

2 available for immediate shipment.

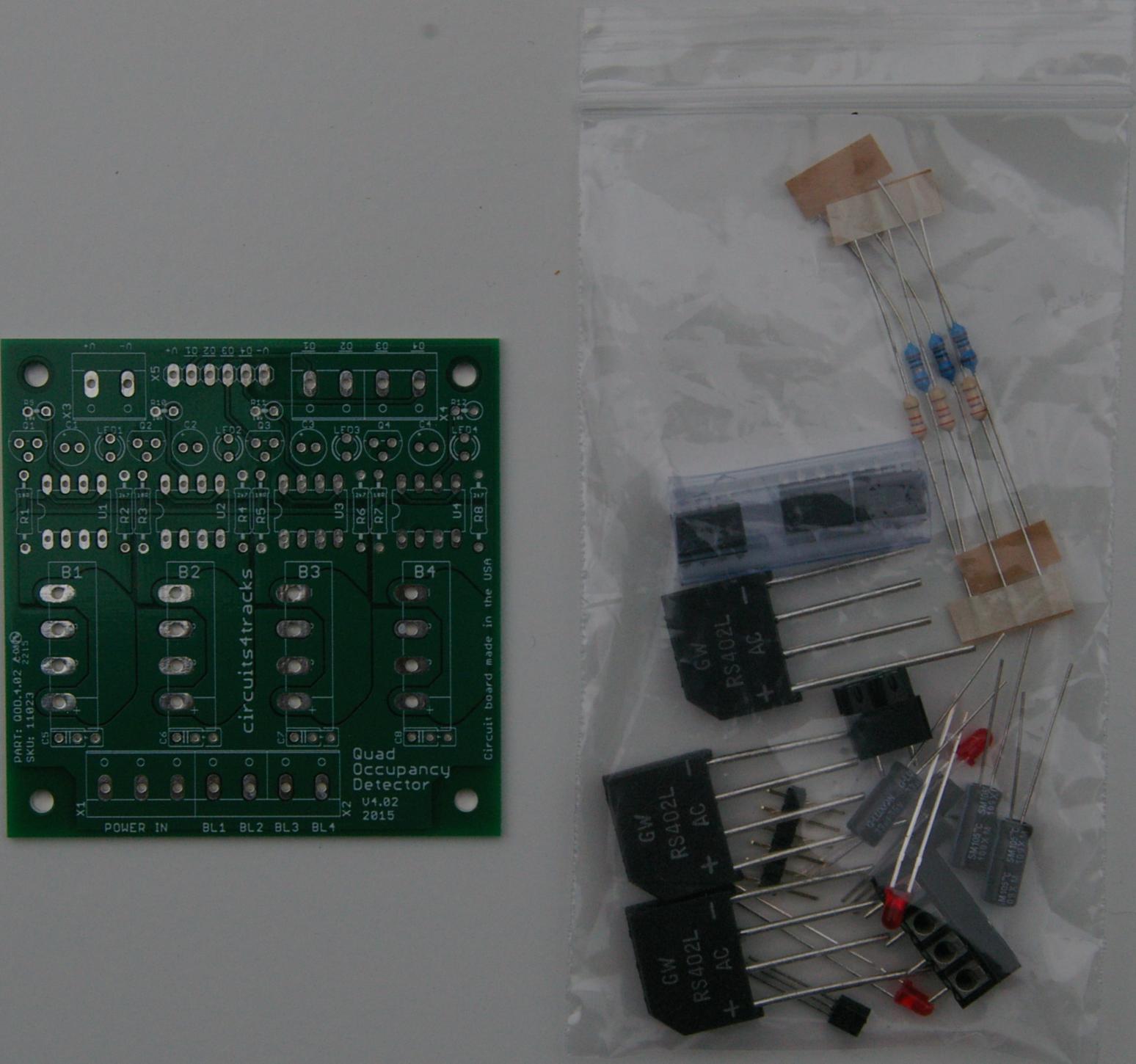

Triple Occupancy Detector Kit V4.02

Price: $14.99

Triple Occupancy Detector
Version 4.02 Board & Parts Kit

Board & Parts Kit to assemble one Triple Occupancy Detector capable of track currents up to 4 amperes per block. Specifically produced for use with the Grade Crossing Controller

View details to add to cart...

1 available for immediate shipment.

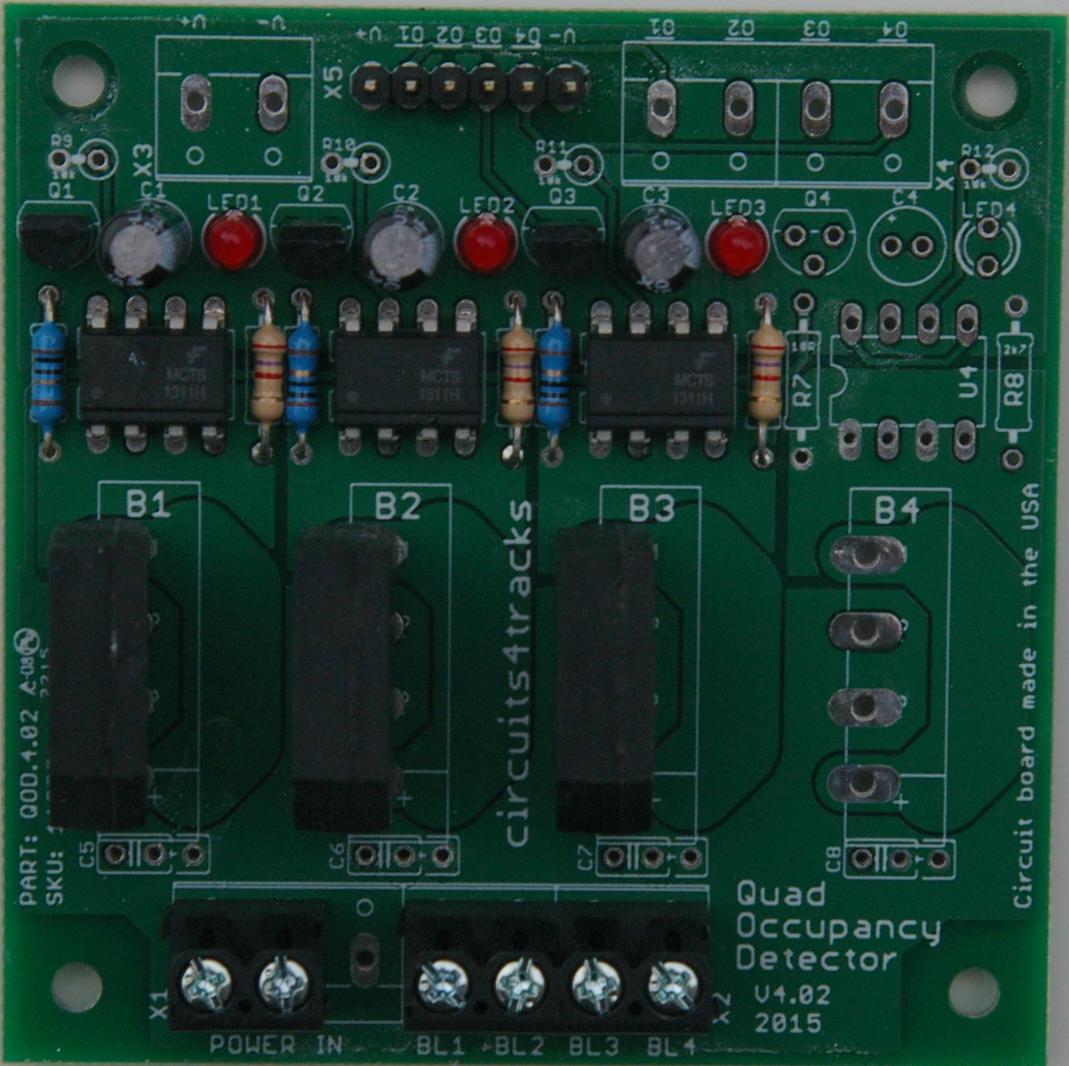

Triple Occupancy Detector Assembled V4.02

Price: $29.99

Triple Occupancy Detector
Version 4.02 Assembled and Tested Unit

Assembled and tested Quad Occupancy Detector capable of track currents up to 4 amperes per block. Specifically produced for use with the Grade Crossing Controller

View details to add to cart...

2 available for immediate shipment.

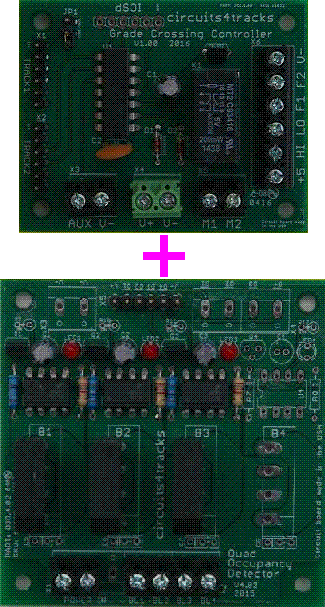

GCC Stall-Motor/3OD Combination, Assembled

Price: $60.99

Combination:
Stall-Motor GCC/one 3OD
Assembled & tested units with data cable

Assembled & Tested GCC circuit and one Triple Occupancy Detector (V4.02) to automatically operate grade crossing signals for a single-track crossing. Includes one 30cm/12" data cable.

View details to add to cart...

2 available for immediate shipment.

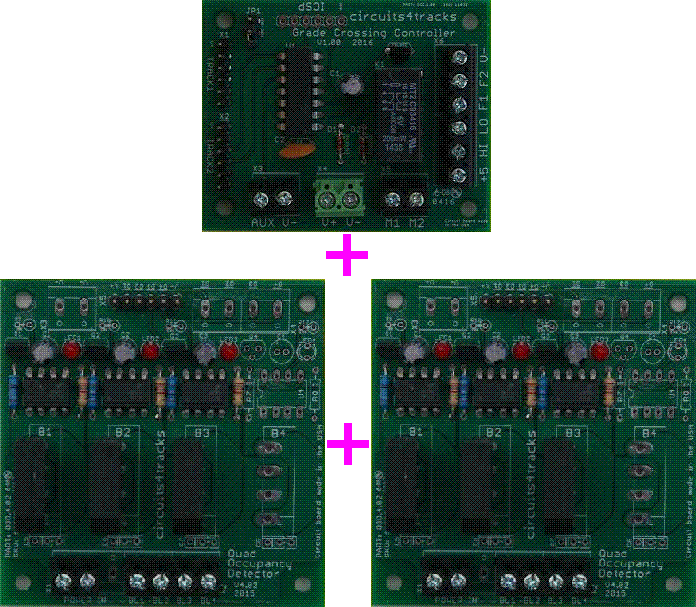

GCC Stall-Motor/3OD/3OD Combination, Assembled

Price: $87.99

Combination:
Stall-Motor GCC/two 3OD
Assembled & tested units with two data cables

Assembled & Tested GCC circuit and two Triple Occupancy Detectors (V4.02) to automatically operate grade crossing signals for a two-track crossing. Includes two 30cm/12" data cables.

View details to add to cart...

1 available for immediate shipment.

GCC Stall-Motor/3OD Combination, Kit

Price: $29.99

Combination:
Stall-Motor GCC/one 3OD
Board & Parts Kits with data cable

Board & Parts Kit to assemble one GCC and one Triple Occupancy Detector (V4.02) to automatically operate grade crossing signals for a single-track crossing. Includes one 30cm/12" data cable.

View details to add to cart...

This item can be shipped within 2-3 business days.

GCC Stall-Motor/3OD/3OD Combination, Kit

Price: $42.99

Combination:
Stall-Motor GCC/two 3OD
Board & Parts Kits with two data cables

Board & Parts Kit to assemble one GCC and two Triple Occupancy Detectors (V4.02) to automatically operate grade crossing signals for a two-track crossing. Includes two 30cm/12" data cables.

View details to add to cart...

This item can be shipped within 2-3 business days.

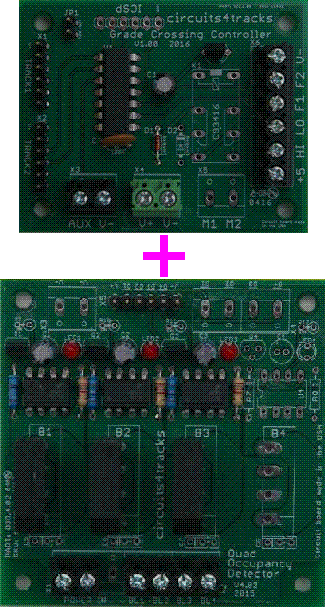

GCC Basic/3OD Combination, Assembled

Price: $54.99

Combination:
GCC Basic/one 3OD
Assembled & tested units with data cable

Assembled & Tested GCC circuit (no stall-motor output) and one Triple Occupancy Detector (V4.02) to automatically operate grade crossing signals for a single-track crossing. Includes one 30cm/12" data cable.

View details to add to cart...

2 available for immediate shipment.

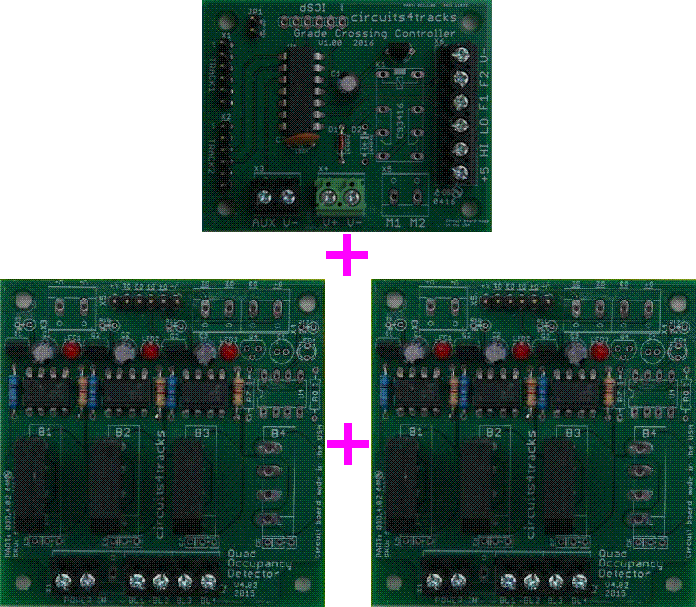

GCC Basic/3OD/3OD Combination, Assembled

Price: $81.99

Combination:
GCC Basic/two 3OD
Assembled & tested units with two data cables

Assembled & Tested GCC circuit (no stall-motor output) and two Triple Occupancy Detectors (V4.02) to automatically operate grade crossing signals for a two-track crossing. Includes two 30cm/12" data cables.

View details to add to cart...

1 available for immediate shipment.

GCC Basic/3OD Combination, Kit

Price: $25.99

Combination:
Basic GCC/one 3OD
Board & Parts Kits with data cable

Board & Parts Kit to assemble one GCC (no stall-motor output) and one Triple Occupancy Detector (V4.02) to automatically operate grade crossing signals for a single-track crossing. Includes one 30cm/12" data cables.

View details to add to cart...

1 available for immediate shipment.

GCC Basic/3OD/3OD Combination, Kit

Price: $38.99

Combination:
Basic GCC/two 3OD
Board & Parts Kits with two data cables

Board & Parts Kit to assemble one GCC (no stall-motor output) and two Triple Occupancy Detector (V4.02) to automatically operate grade crossing signals for a two-track crossing. Includes two 30cm/12" data cables.

View details to add to cart...

0 available for immediate shipment.
