Quad Occupancy Detector

Our current-sensing occupancy detector works with both DC and DCC layouts. Four detectors are on a single circuit board to bring the cost per detector lower, however it is possible to only populate part of a card if one, two, or three detectors in one location is practical.

Electrical isolation between your track power and the circuit the detector feeds into is a good idea. Our detector accomplishes this by using optical isolation.

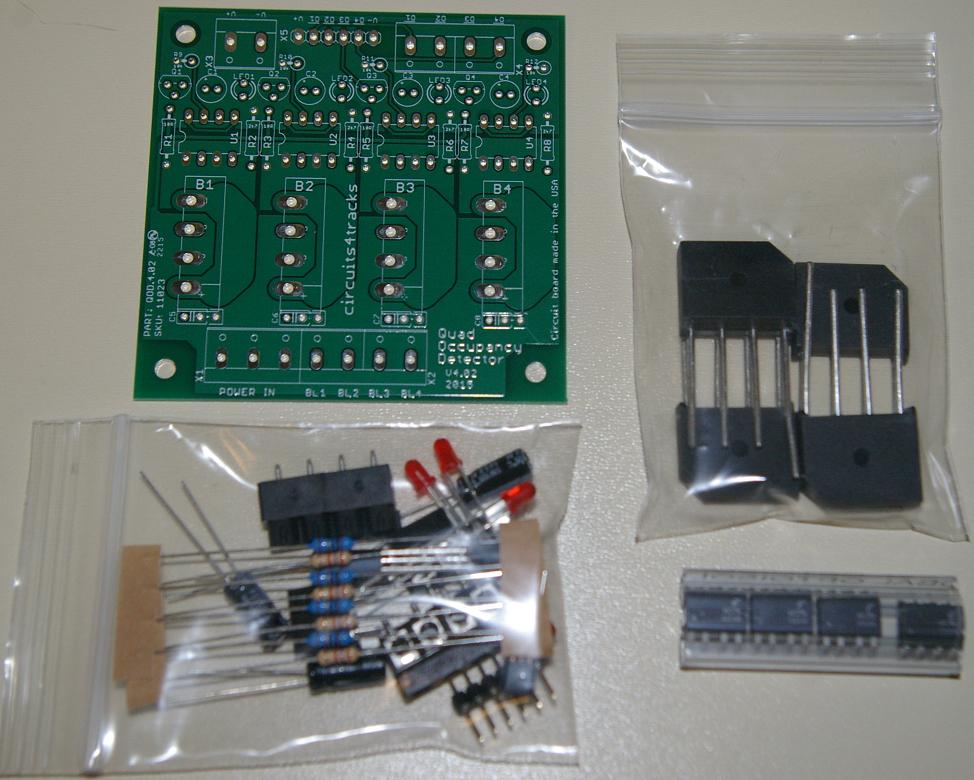

QOD: Quad Occupancy Detector Kit

Price: $19.99

Quad Occupancy Detector
Version 4.03 Board & Parts Kit

Board & Parts Kit to assemble one Quad Occupancy Detector capable of track currents up to 4 amperes per block.

View details to add to cart...

3 available for immediate shipment.

QOD: Quad Occupancy Detector Assembled

Price: $36.19

Quad Occupancy Detector
Version 4.03 Assembled and Tested Unit

Assembled and tested Quad Occupancy Detector capable of track currents up to 4 amperes per block.

View details to add to cart...

13 available for immediate shipment.

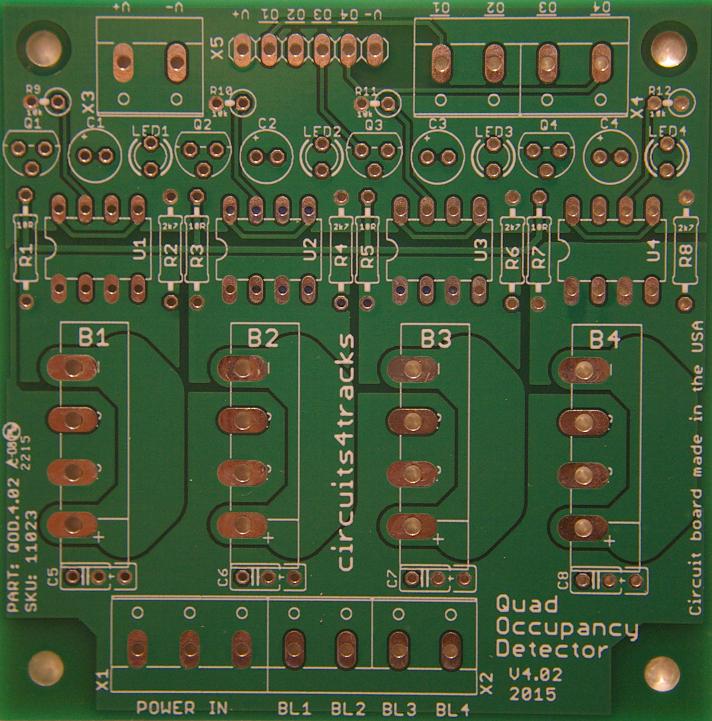

QOD: Quad Occupancy Detector Circuit Board

Price: $5.59

Quad Occupancy Detector
Version 4.03 Circuit Board



View details to add to cart...

112 available for immediate shipment.

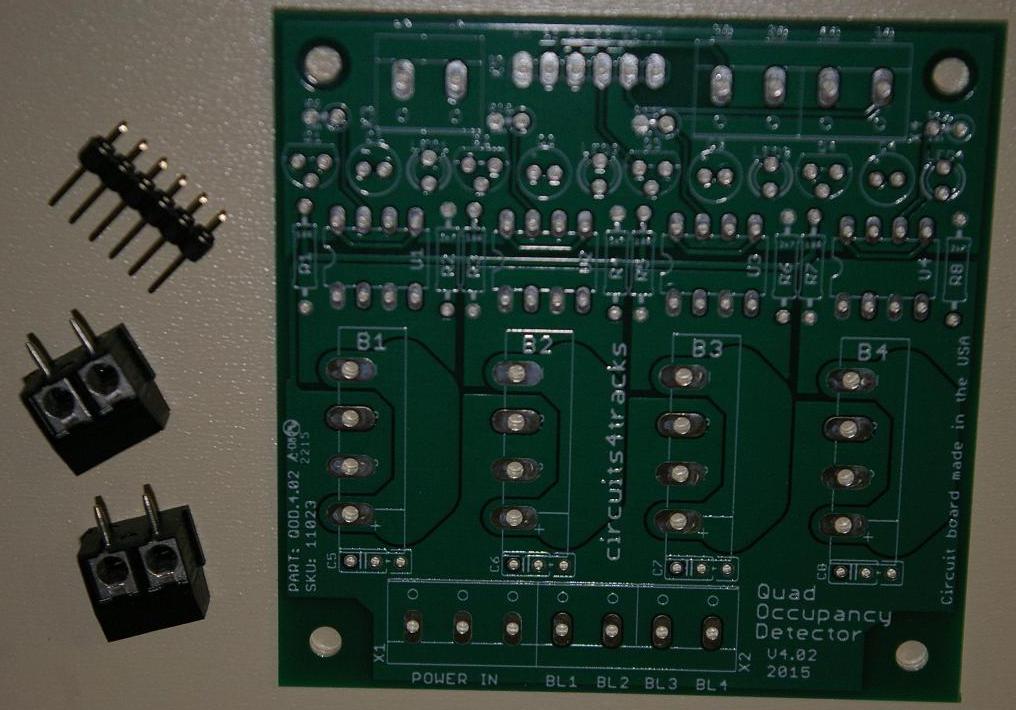

Dual Occupancy Detector Add-On Kit

Price: $6.19

Dual Occupancy Detector
Version 4.03 Add-On Kit

One circiut board and additional connectors to be used with a Board & Parts Kit (standard or high current) to build TWO Dual Occupancy Detectors. It contains one Quad Occupancy Detector circuit board, two 2-terminal blocks, and one 6-pin header.

View details to add to cart...

This item can be shipped within 2-3 business days.

QOD: Quad Occupancy Detector Kit, High Current

Price: $25.49

Quad Occupancy Detector
Version 4.03 High Current Board & Parts Kit

Board & Parts Kit to assemble one Quad Occupancy Detector capable of track currents up to 8 amperes per block.

View details to add to cart...

This item is made to order and will ship within one week.

QOD: Quad Occupancy Detector Assembled, High Current

Price: $44.99

Quad Occupancy Detector
Version 4.03 High Current Assembled and Tested Unit

Assembled and tested Quad Occupancy Detector capable of track currents up to 8 amperes per block.

View details to add to cart...

This item is made to order and will ship within one week.

Current sensing detection requires rolling stock to draw a small current.

You can make your own detectable wheelsets for rolllng stock that draw a small current, or you can purchase them from companies such as Logic Rail Technologies. We have had good results using two of their detectable wheelsets per car.


Detectable wheelset by Logic Rail Technologies

Regular shipping fee based on location:

  • Canada: $14.00 (tracked)
  • USA: $17.00 (tracked)
  • Australia: $28.00 (tracked)
  • UK: $25.00 (tracked)
  • EU: $26.00 (tracked)
  • Thailand: $30.00 (tracked)
  • UAE: $30.00 (tracked)
  • Other locations: $32.00 (tracked where available)
  • FREE shipping on orders over $200

Tracked shipping is available to locations noted above. Contact us for information on other locations.

Where tracking is available, a reduced priced non-tracked shipping option is available on small orders up to 200 grams. This option will appear automatically at the checkout when available.

Payment methods available:

  • PayPal
  • Cheque or money order via mail
  • Interac e-Transfer Interac e-Transfer (Canadian orders only)



Ordering multiple kits:

When placing an order with more than two of the same kit, bulk packaging will be used. This means that instead of separately packaged kits, the required quantity of each component will be packaged together. One or two separate components needed for all kits will be in a plastic bag or IC tube with a label or labels applied to indicate the component. One hardcopy of the assembly and installation instructions will be included with the order. If you require individual kit packaging, you must email us in advance or at the time of ordering.
