This device provides a reversible card-edge connector to attach it to a Tortoise switch machine and has separate connectors for its motor and the two sets of SPDT contacts. The reversible feature means that it can be connected either way to a switch machine and the wiring connections remain the same.

A 2-position screw terminal block provides connections for the motor power, and a 3-position terminal block provides connections for the traction power for an electrified frog, with the centre terminal being the common terminal.

Either a 3-position terminal block or a 3-pin header is available for the second SPDT contacts, with the header option provided for easier connection to a digital system, including our future signalling product, Signal Master Plus.

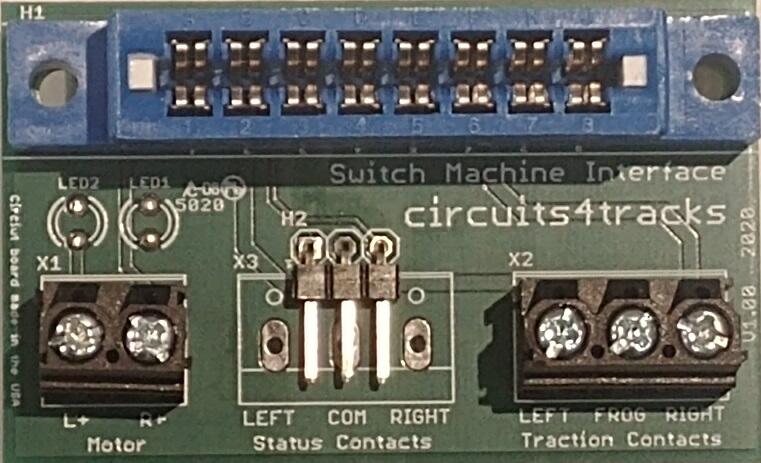

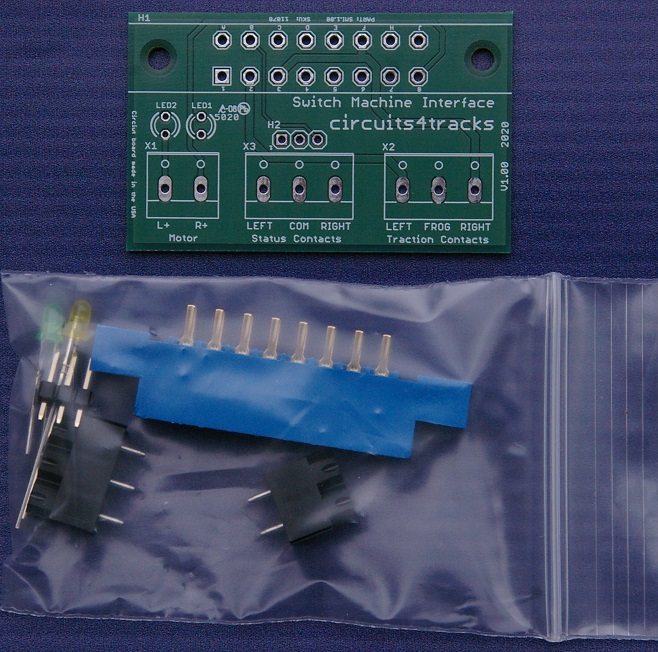

Switch Machine Interface Kit - Header Status

Price: $7.19

Switch Machine Interface
With header for status contacts - Version 1.00 Board & Parts Kit



View details to add to cart...

2 available for immediate shipment.

Switch Machine Interface Assembled - Header Status

Price: $10.29

Switch Machine Interface
With header for status contacts - Version 1.00 Assembled and Tested Unit



View details to add to cart...

1 available for immediate shipment.

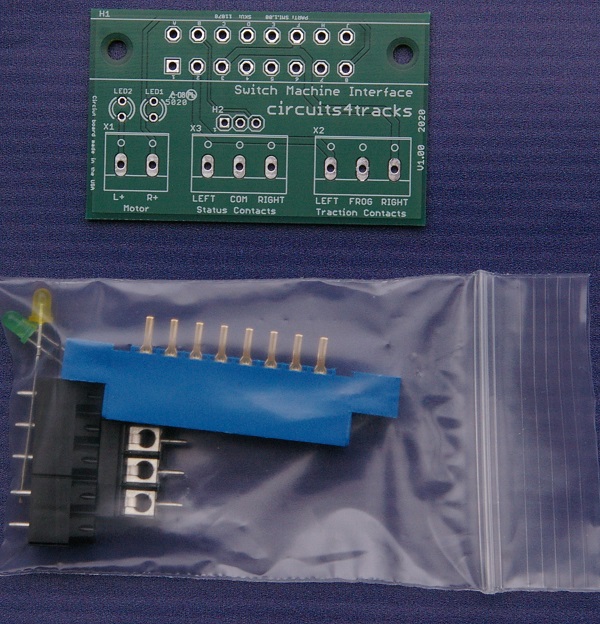

Switch Machine Interface Kit - Terminal Block Status

Price: $8.19

Switch Machine Interface
With terminal block for status contacts - Version 1.00 Board & Parts Kit



View details to add to cart...

2 available for immediate shipment.

Switch Machine Interface Assembled - Terminal Block Status

Price: $11.29

Switch Machine Interface
With terminal block for status contacts - Version 1.00 Assembled and Tested Unit



View details to add to cart...

1 available for immediate shipment.

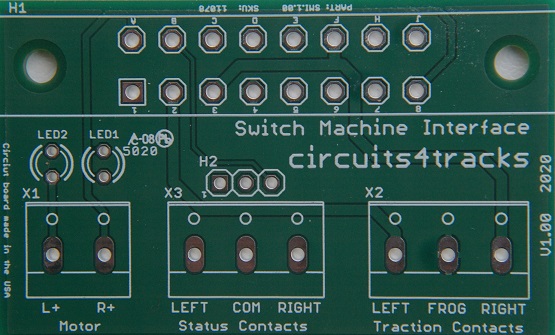

Switch Machine Interface Circuit Board

Price: $4.25

Switch Machine Interface
Version 1.00 Circuit Board



View details to add to cart...

146 available for immediate shipment.
