Product Documentation

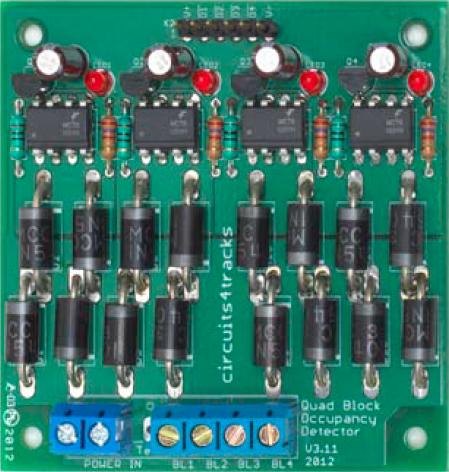

Quad Occupancy Detector, VERSION 3
This product has been discontinued and can no longer be ordered.
Documentation:
- Installation Instructions, Version 3 Last revised: Feb 06, 2013
- Assembly Instructions, Version 3 Last revised: Feb 08, 2013
- Parts list, Version 3 (with Digi-Key / Digi-Key Canada catalog numbers) Last revised: Mar 02, 2013
- Schematic diagram, Version 3 Last revised: Feb 24, 2013
Articles and Application Notes:
- Interfacing With Other Systems Last revised: Nov 14, 2015
- Detecting Non-moving or Non-powered Trains on DC Layouts Last revised: Dec 12, 2015
- How to Debounce Occupancy Detector Output Last revised: Dec 12, 2015
- Lowering AC Sensitivity Last revised: Apr 16, 2016
| Specifications: | ||
| Version: | 3.00 | |
| Card size: | 2.75" x 2.75" | |
| Mounting hole size: | 0.125" Suitable for #4 screws | |
| Detectors per card: | 4 Card may be partially populated with 1, 2 or 3 detectors | |
| Maximum continuous track current: | 3 amperes | |
| Track connector: | Screw terminal blocks 2 terminals for power input feed, 1 for each feed to block Each terminal accepts 14-22 gauge wire | |
| Output connector: | 6-pin SIP header for outputs, ground, and power | |
| Output type: | Open collector Compatible with active low input devices, such as C/MRI | |
| Output maximum voltage: | 26 volts | |
| Output maximum continuous current: | 50 milliamperes | |
| ROHS compliant: | Yes | |
| Approximate kit assembly time: | 45 - 60 minutes | |
